Convert compatible images for emWin

LCD Bitmap Converter for emWin is an image converter tool, which helps you conveniently convert images into an emWin bitmap, which can be easily integrated into your emWin based project.

The converted images are fully compatible with emWin in 2 kinds of format: "C" bitmap file (*.c) and "C" stream binary file (*.dta).

Runs on Microsoft Windows

Released: April 19, 2015

Runs On: Windows XP, Vista, 7, 8, 10 (32/64 bit)

Key Features

  • Open images (*.bmp, *.gif, *.png, *.jpg, *.tif, etc).
  • Edit images with tools (Change image size, Rotate, Mirror, etc).
  • Convert compatible images for Segger emWin:
    • "C" bitmap file (*.c)
    • "C" stream binary file (*.dta)

Convert fonts at ease

It is very easy to convert fonts, just need a few steps:

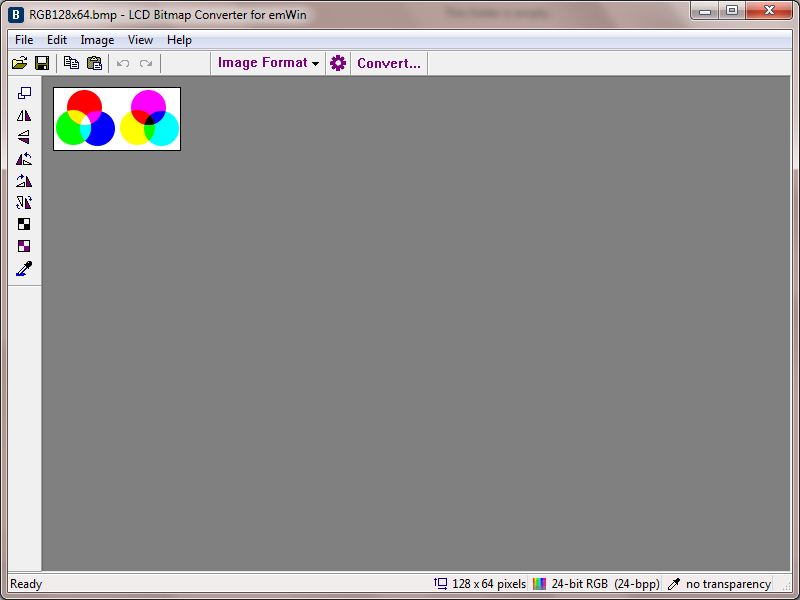

Open Image
Step 1: Open an image

Start the application and open an image(*.bmp, *.gif, *.jpg, *.png, *.tif, etc).

Edit Image
Step 2: Edit the image

Edit the image with the tools if necessary. Here you can Change the image size, Rotate 90 / 180 / 270 degree, Flip vertical or horizontal, etc.

Convert Image
Step 3: Convert to compatible format

The image must be converted to one of the compatible format for Segger emWin.

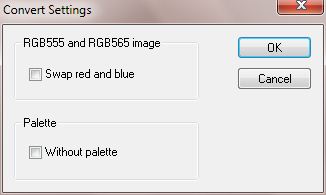

Convert Settings
Step 4: Convert Settings

Before converting image, click the button to choose compatibility settings for emWin: Swap red and blue for RGB565, RGB555 image, with or without palette.

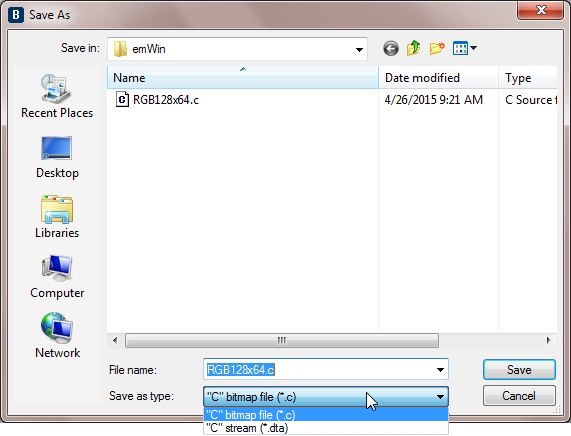

Export Image
Step 5: Export the image

Click the Convert... button to choose which image format you need: "C" bitmap file (*.c), or "C" stream binary file(*.dta).

Sample Images

Go to the Sample Images page to see the detailed information.

Or you can directly download the sample image here:


Click the Download button to download LCD Bitmap Converter for emWin v2.0
